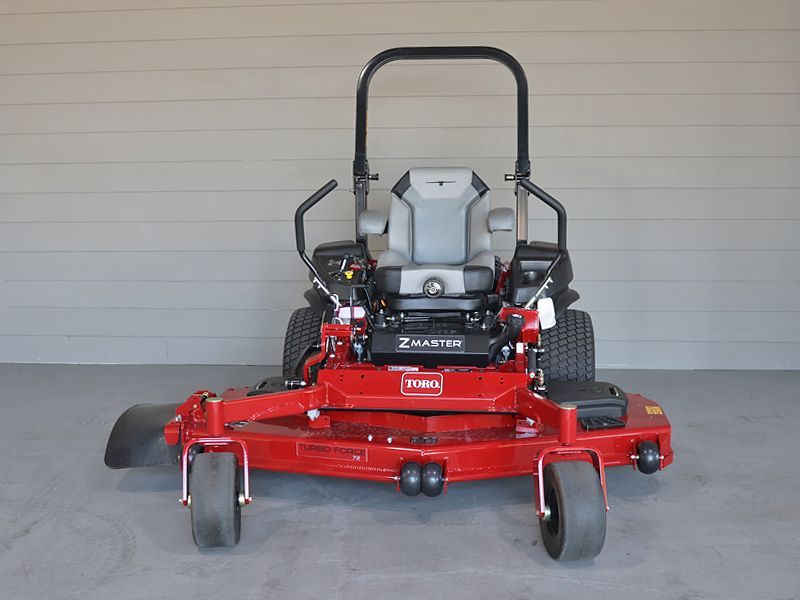

Toro 72" Z Master 6000 Series – Model 72961 Specs

Engine & Power

• Engine: Kawasaki FX, 999cc, V-Twin, air-cooled
• Horsepower: Approximately 31 HP
• Starting System: Electric start
• Fuel Type: Gasoline
• Fuel Capacity: 12 gallons (45.4 L)

Cutting System

• Deck Type: TURBO FORCE®
• Deck Size: 72 inches (183 cm)
• Deck Construction: 7-gauge high-strength steel with bull-nose bumper
• Blades: 3 high-lift, heat-treated steel blades
• Blade Tip Speed: ~18,500 ft/min
• Cutting Height: Adjustable from 1.0" to 5.5" in 0.25" increments
• Discharge: Rubber chute with tool-free adjustable baffle

Drive System

• Transmission: Unitized 16cc hydro pumps with 17.1 cu-in wheel motors
• Ground Speed:
• Forward: Up to 11.5 mph (18.5 km/h)
• Reverse: Variable
• Hydraulic Fluid: Premium synthetic

Frame & Tires

• Frame: Heavy-duty tubular steel (3" x 1.5", 10-gauge)
• Front Tires: 13" x 6.5" – 6", flat-free semi-pneumatic
• Rear Tires: 24" x 12" – 12"

Operator Features

• Seat: Deluxe suspension seat with armrests and 3-D isolator mounts
• Controls: Adjustable, dampened steering levers
• Display: Hour meter, fuel level, voltage, diagnostics
• ROPS: Foldable rollover protection system with seatbelt

Spindle Assembly

• Spindle Housings: 9" cast aluminum
• Bearings: Maintenance-free sealed ball bearings

Dimensions & Weight

• Weight: Approximately 1,330 lbs (603 kg)
• Overall Dimensions (approx.):
• Length: ~91"
• Width with deflector down: ~87.6"
• Width with deflector up: ~73.6"
• Height: ~52.5"

Warranty

• Machine: 5 years or 1,400 hours (whichever comes first)
• Engine: Manufacturer warranty
• Spindles: Included in commercial coverage
