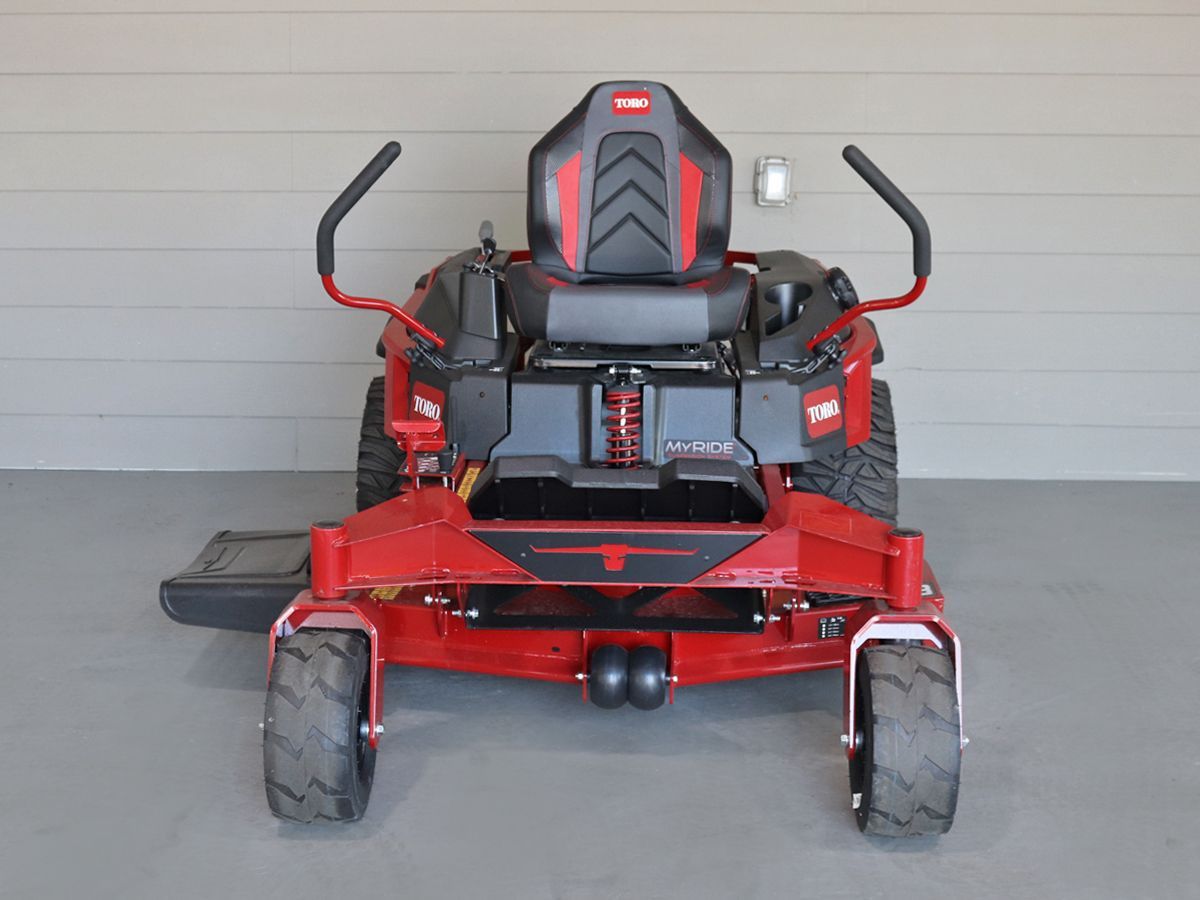

Toro 48" TITAN® MyRIDE® Zero Turn Mower – Model 76411 Specs

Engine & Performance:

• Engine Brand: Kawasaki FR691
• Horsepower: 23 hp (gross @ 3,300 RPM)
• Engine Displacement: 726 cc
• Blade Tip Speed: 18,908 ft/min

Deck:

• Cutting Width: 48 in
• Deck Design: 10-gauge IronForged® steel with full welded bumper
• Blade Design: 0.164 in thick steel with blade stiffener

Drive System & Speed:

• Transmission: Dual hydrostatic HG-ZT2800
• Drive Type: Rear-wheel drive (zero-turn)
• Forward Speed: Up to 8.5 mph

Fuel & Cooling:

• Fuel Capacity: 5 gallons (18.9 L)
• Cooling System: Air cooled
• Fuel Type: Gasoline

Cutting System:

• Height of Cut: 1.5 – 5.0 in
• Number of Blades: 3
• Height Adjustment: Foot-operated
• Hitch Bracket: Standard

Chassis & Frame:

• Frame: 3 in × 1.5 in × 0.120 in wall tubular steel

Comfort & Convenience:

• Suspension System: MyRIDE® Suspension Platform
• Seat: 20 in premium high-back (gaming style)
• Steering Controls: Twin lever with dampeners
• Cup Holder: Yes
• Air Filter: Kawasaki standard
• Clutch: Electromagnetic PTO

Wheels & Tires:

• Front Tires: 13 in × 6.5 in – 6 in pneumatic
• Rear Tires: 22 in × 11 in

Additional Features:

• Discharge Chute: Rubber
• Front Bumper: Reinforced bull-nose
• Spindle Housing: Cast-aluminum
• ROPS (Roll Over Protection System): Optional
• Product Weight: 770 lbs (349.3 kg)
• Recommended Oil: 10W-30
• Intended Use: Residential

Dimensions:

• Shipping Dimensions: 82 in × 57 in × 52 in

Compliance:

• Not CARB Compliant
