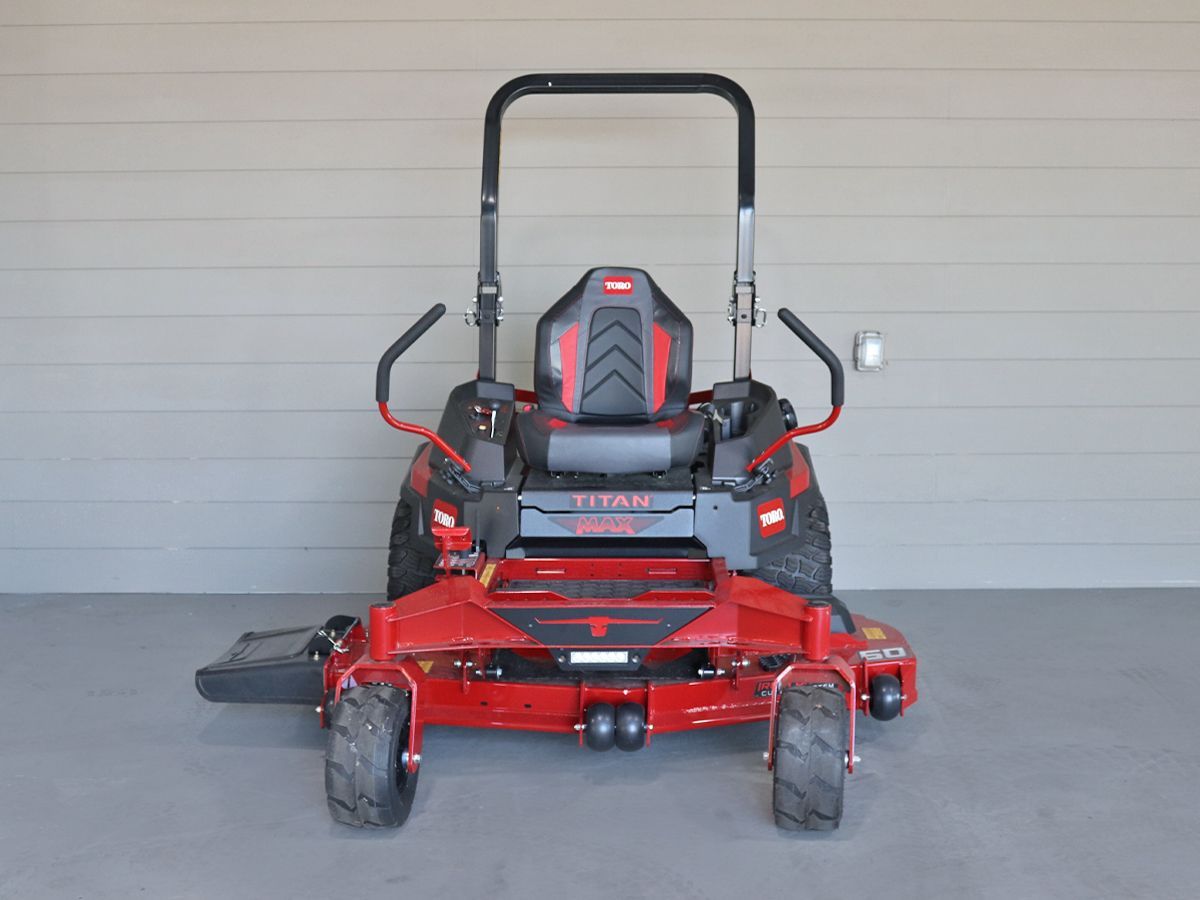

Toro TITAN Max 60" Zero Turn Mower – Model 76606 Specs

Engine & Performance:

• Engine Brand: Kohler 7000 Series Pro
• Engine Model: KT745
• Horsepower: 26 hp (gross)
• Displacement: 747 cc
• Fuel Type: Gasoline
• Fuel Capacity: 5 gallons (18.9 L)
• Air Filter: Heavy-duty canister-style
• Starting System: Electric start

Mowing Deck:

• Deck Size: 60 inches
• Deck Type: IronForged® fabricated deck
• Deck Material: 10-gauge steel
• Cutting Height: 1.5" – 4.5"
• Height Adjustment: Foot-operated
• Deck Blades: 3
• Spindle Type: Cast aluminum
• Blade Tip Speed: Approx. 18,000+ ft/min
• Discharge Type: Side discharge (with mulching and bagging capabilities)

Drive System:

• Transmission: Hydro-Gear ZT-3100 commercial-grade
• Drive Type: Dual hydrostatic
• Forward Speed: Up to 8.5 mph
• Reverse Speed: Up to 4 mph

Frame & Build:

• Frame: Fully welded tubular steel
• Front Axle: Fixed, steel
• Front Tires: 13 x 6.5 in
• Rear Tires: 23 x 12 in

Comfort & Convenience:

• Seat: 26" high-back premium seat with armrests
• Suspension: Seat suspension
• Steering: Dual levers with dampeners
• Cup Holder: Yes
• Hour Meter: Yes
• ROPS (Roll Over Protection System): Optional/available

Dimensions & Weight:

• Length: Approx. 77 in
• Width (with chute down): Approx. 76 in
• Width (chute up): Approx. 63 in
• Height: Approx. 45 in
• Weight: Approx. 900 lbs

Warranty:

• Residential Warranty: 3 years, unlimited hours
• Commercial Engine Warranty: 3 years
