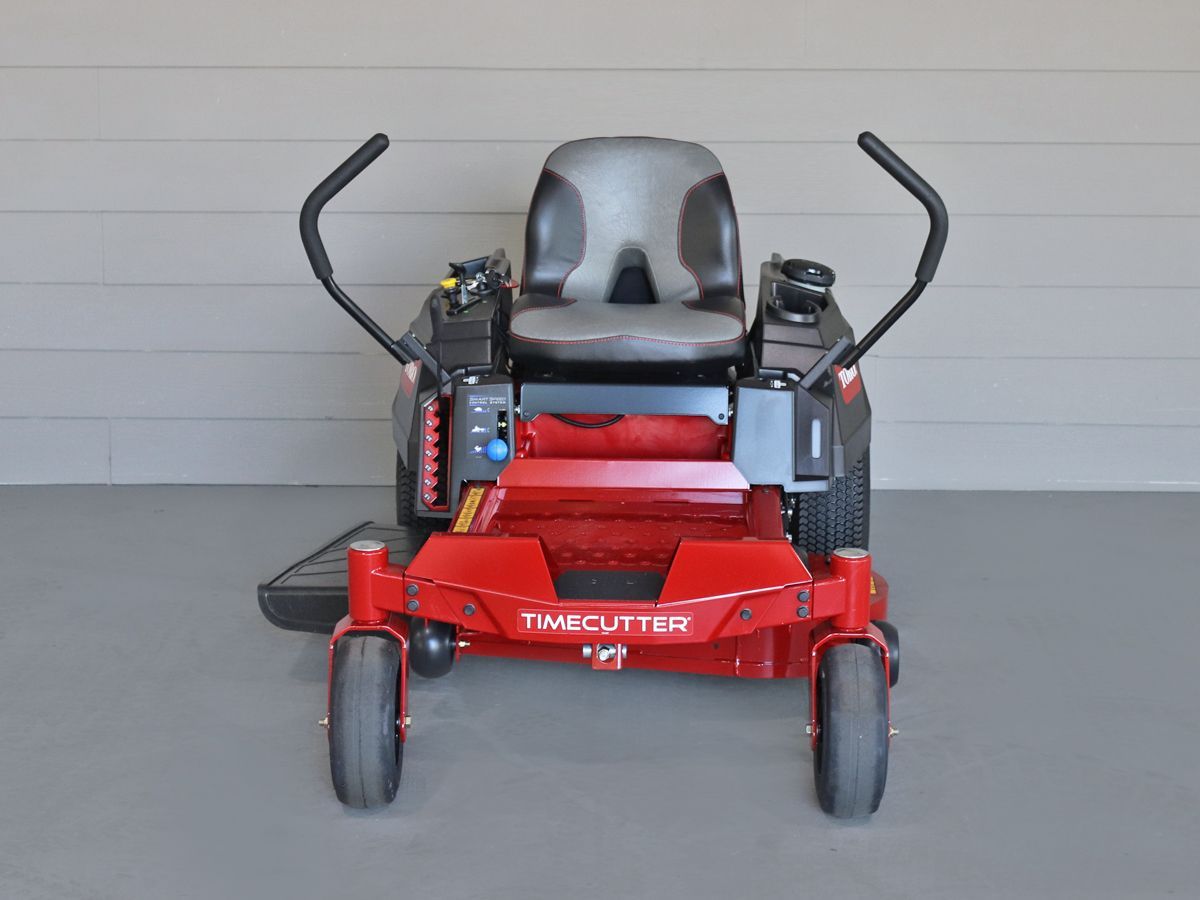

Toro TimeCutter 34" Zero Turn Mower – Model 77301 Specs

Engine & Performance:

• Engine Brand: Toro
• Engine Model: 452cc Toro engine
• Horsepower: Approximately 16 hp (gross)
• Displacement: 452 cc
• Fuel Type: Gasoline
• Fuel Capacity: 3 gallons (11.4 L)
• Starting System: Electric start
• Air Filter: Dual-element

Mowing Deck:

• Deck Size: 34 inches
• Deck Type: Stamped steel
• Deck Material: 13-gauge steel
• Cutting Height Range: 1.5" – 4.5"
• Height Adjustment: 7-position, foot-assisted
• Deck Blades: 2
• Blade Engagement: Electric PTO
• Discharge Type: Side discharge (mulch and bagging optional)

Drive System:

• Transmission: Dual Hydro-Gear EZT
• Drive Type: Dual hydrostatic
• Forward Speed: Up to 7 mph
• Reverse Speed: Up to 3 mph

Frame & Build:

• Frame: Welded steel
• Front Tires: 11 x 4 in
• Rear Tires: 18 x 6.5 in
• Front Axle: Fixed

Comfort & Convenience:

• Seat: 18" high-back seat
• Steering Controls: Dual levers with dampeners
• Cup Holder: Yes
• Washout Port: No
• Hour Meter: Optional

Dimensions & Weight:

• Length: Approx. 71 in
• Width (with chute down): Approx. 43 in
• Width (chute up): Approx. 35 in
• Height: Approx. 42 in
• Weight: Approx. 452 lbs

Warranty:

• Residential Warranty: 3 years, unlimited hours
