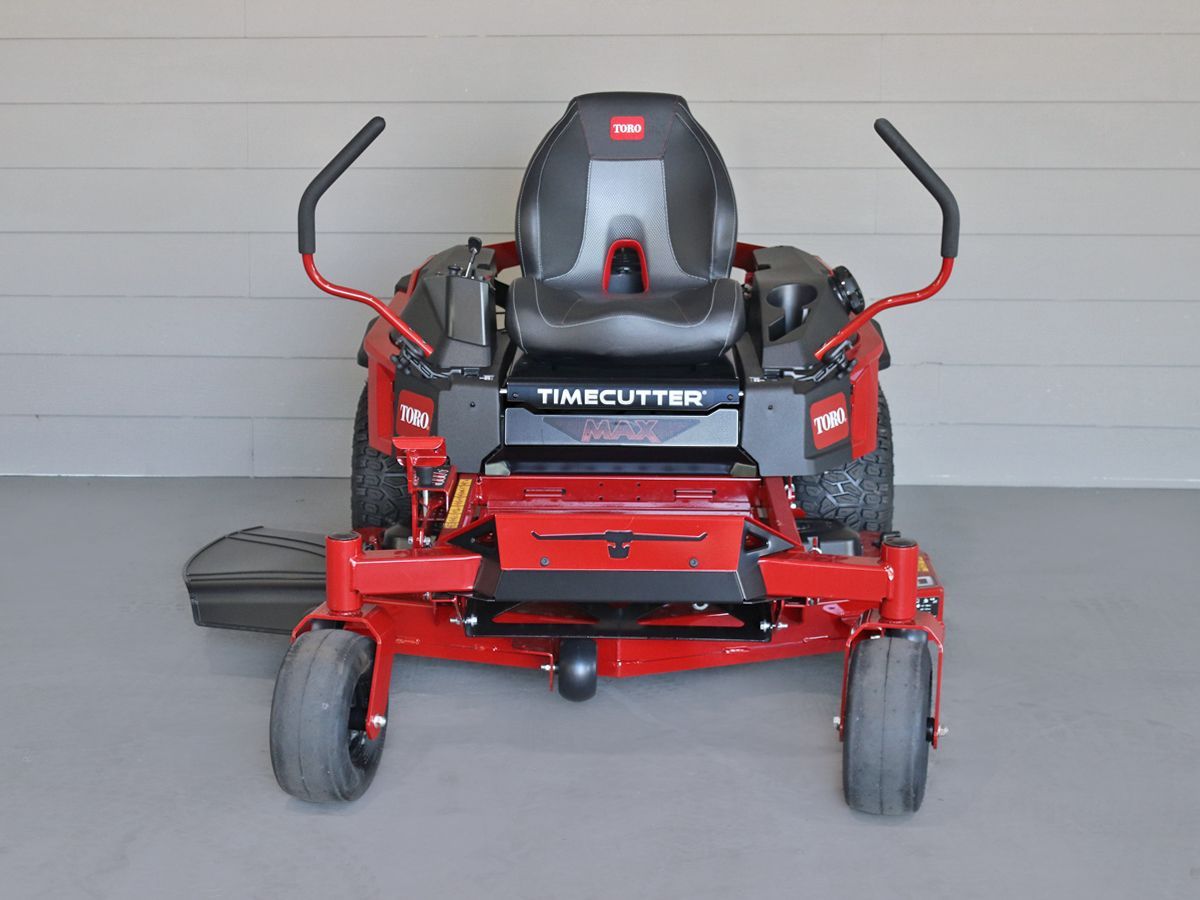

Toro imeCutter Max 50" Zero Turn Mower – Model 77501 Specs

Engine & Performance:

• Engine Brand: Kohler
• Engine Model: 24 hp Kohler 725cc V-Twin
• Displacement: 725 cc
• Fuel Type: Gasoline
• Fuel Capacity: 3 gallons (11.4 L)
• Starting System: Electric start
• Air Filter: Dual-element
• Oil Capacity: 2 qt (1.89 L)

Mowing Deck:

• Deck Size: 50 inches
• Deck Type: IronForged® fabricated deck
• Deck Material: 10-gauge steel
• Deck Blades: 3
• Blade Engagement: Electric PTO
• Cutting Height Range: 1.5" – 4.5"
• Height Adjustment: Foot-assisted
• Deck Lift: Manual
• Discharge Type: Side discharge (mulch and bagging kits optional)

Drive System:

• Transmission: Hydro-Gear ZT-2200 (Hydrostatic)
• Drive Type: Dual hydrostatic
• Forward Speed: Up to 7 mph
• Reverse Speed: Up to 3 mph

Frame & Tires:

• Frame: Fully welded tubular steel
• Front Tires: 11 x 6 in
• Rear Tires: 20 x 10 in
• Front Axle: Fixed

Comfort & Convenience:

• Seat: 18" high-back seat with armrests
• Steering: Dual lever controls with dampeners
• Floor Pan: Rubberized for comfort
• Cup Holder: Yes
• Hour Meter: Yes (standard)
• Storage Compartment: Yes

Dimensions & Weight:

• Length: Approx. 76 in
• Width (chute up): Approx. 54 in
• Width (chute down): Approx. 63 in
• Height: Approx. 45 in
• Weight: Approx. 620 lbs

Warranty:

• Residential Warranty: 3 years, unlimited hours
