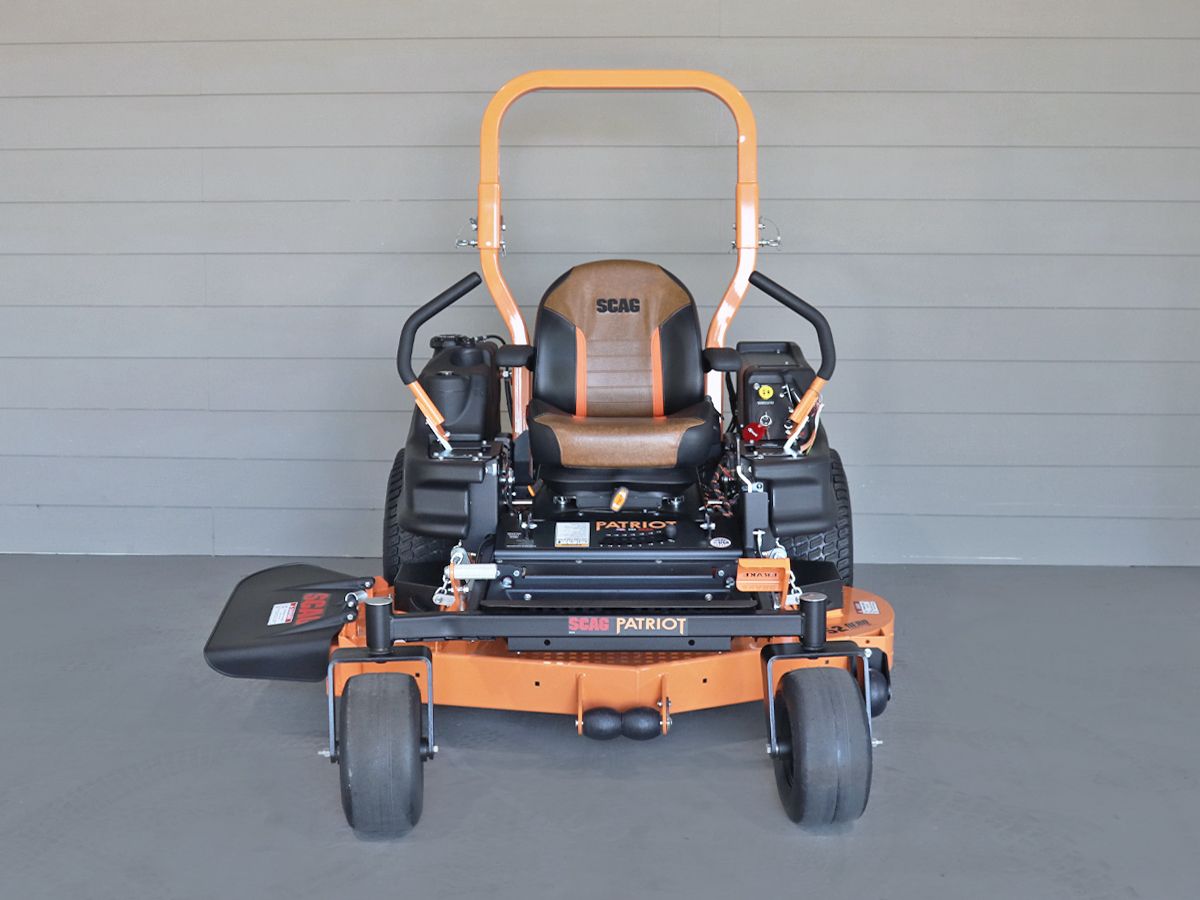

SCAG PATRIOT Z 52" Zero Turn Mower – Model SPZ-52H-22FX Specs

Engine & Performance

• Engine: Kawasaki® FX691V, 22 HP
• Fuel Capacity: 6.5 gallons
• Drive System: Dual Hydro-Gear ZT-3100 hydrostatic transaxles
• Forward Speed: Up to 8.5 mph
• Reverse Speed: Up to 5 mph

Deck & Cutting System

• Deck Width: 52″ Hero™ Cutter Deck
• Cutting Height: 1.5″ to 5″ in 0.25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate welded steel with reinforced spindle mounts
• Spindles: Aluminum housing, sealed ball bearings
• Blade Engagement: Ogura GT2 clutch, 108 ft-lb torque

Comfort & Controls

• Seat: Torsion-spring suspension seat with armrests
• Footplate: Iso-mounted, rubber-coated steel footplate
• Parking Brake: Foot-operated disc brake system

Frame & Durability

• Frame: Heavy-duty tubular steel
• Hydro Transaxles: All-metal gears with spin-on filters and cooling fans

Dimensions & Weight

• Length: 73″
• Width (chute down): 64.5″
• Width (transport): 53″
• Height (ROPS folded): 46.5″
• Height (ROPS up): 61″
• Weight: ~907–911 lbs
