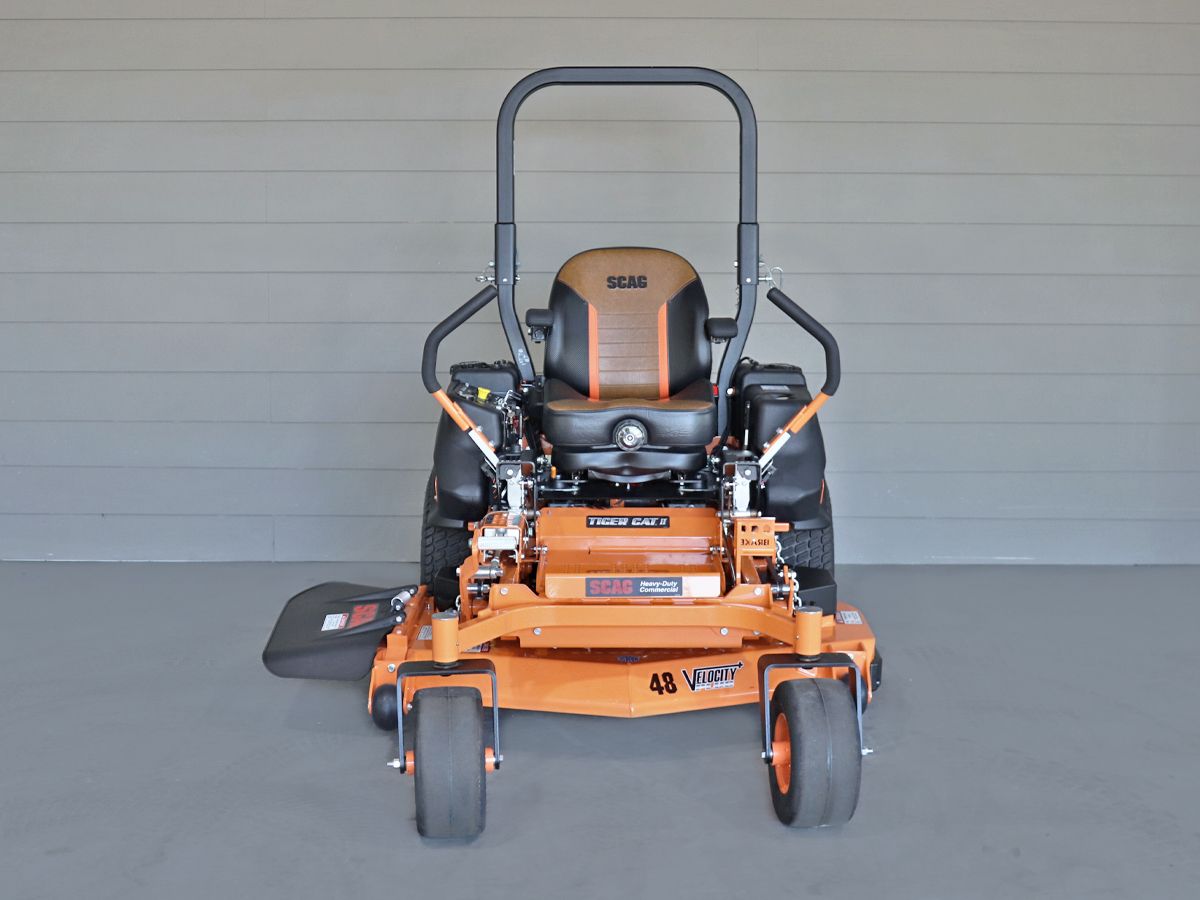

SCAG TIGER CAT II 48" Zero Turn Mower – Model STCII-48V-22FX   Specs

Engine & Performance

• Engine: Kawasaki® FX691V, 22 HP
• Fuel Capacity: Dual tanks, 9.5 gallons total
• Drive System: Dual Hydro-Gear ZT-3400 transaxles
• Forward Speed: Up to 12 mph
• Reverse Speed: Up to 5 mph

Deck & Cutting System

• Deck Width: 48″ Velocity Plus™ Cutter Deck
• Cutting Height: 1.5″ to 6″ in 0.25″ increments
• Deck Lift: Foot-operated with spring assist
• Construction: Fabricated, welded steel with reinforcement around spindles
• Spindles: Cast-iron, tapered roller bearings, greaseable
• Blade Engagement: Ogura GT3 clutch, 250 ft-lb torque

Comfort & Controls

• Seat: Adjustable suspension seat with armrests and lumbar support
• Footplate: Iso-mounted rubber mat for vibration reduction
• Parking Brake: Lever-operated drum brakes
• Controls: Ergonomic steering levers and easy-access control panel

Frame & Durability

• Frame: Heavy-duty, dual-tube steel construction
• Hydro Transaxles: High-capacity with external oil filters and cooling fans
• ROPS: Foldable rollover protection system

Dimensions & Weight

• Length: 79″
• Width (chute down): 61.5″
• Width (transport): 49.5″
• Height (ROPS folded): 49″
• Height (ROPS up): 72″
• Weight: ~1,170 lbs
